VisualMILL 2014 CAM Software



VisualMILL, our flag-ship CAM software package, is ideal for mold, die & tooling, wood working, rapid-prototyping and general machining. VisualMILL is one of five modules in our standalone CAD/CAM suite, VisualCAD/CAM. VisualMILL includes 2-1/2, 3, 4 & 5 axis machining functionality. It comes with hundreds of free post-processors and a post-processor generator to create your own. Priced right for the cost conscious buyer, VisualMILL CAM software delivers outstanding value for your investment.

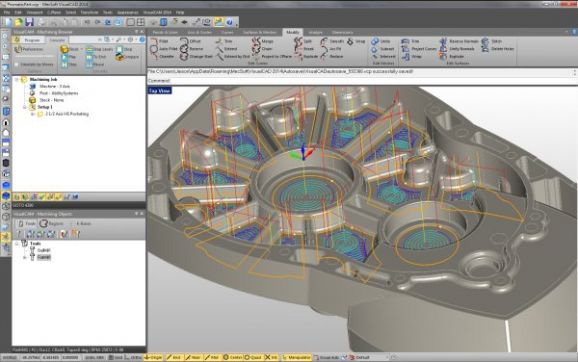

  • Screenshot

  • Configurations

  • Resources

  • Feature List

  • Projects

VisualMILL

VisualMILL 2014 CAM software comes in 4 different configurations to suit the varied machining needs of our customers.

VisualMILL 2014 Standard (STD)
This is a general purpose machining program targeted at the general machinist. This product is ideal for the rapid-prototyping, hobby and educational markets where ease of use is a paramount requirement. Packed with sufficiently powerful manufacturing methods this easy to use package is not only effective but also attractively priced for the budget conscious or entry level buyer.

VisualMILL 2014 Expert (EXP)
This configuration allows 4th Axis Indexed and continuous roughing and finishing operations in VisualMILL 2014. Curve based continuous machining such as 4 Axis Facing, Pocketing, Profiling & Engraving as well as Surface/solids/meshes based machining such as Roughing, Finishing and Curve Projection machining are available. This configuration includes all of the functionality included in the STD configuration.

VisualMILL 2014 Professional (PRO)
This powerful package is ideal for mold, die and tooling, wood working rapid-prototyping and general machining markets. This product boasts of powerful toolpath generation strategies coupled with tools for efficiently controlling the cutting tool for detailed machining capabilities, while not sacrificing ease of use. Suitable for demanding users with sophisticated manufacturing requirements. This product configuration includes all of the functionality included in the EXP configuration described above.

VisualMILL 2014 Premium (PRE)
This package includes our new 5 Axis continuous machining functionality. Suitable for highly sophisticated machining requirements such as aerospace, advanced mold making and woodworking industry, this package includes such machining methods such as surface normal machining, swarf machining and surface flow machining. The package in addition includes all the functionality found in the PRO configuration described above.


Use the following resources to get started with VisualMILL:

Watch a feature presentation overview of VisualCAD/CAM 2014
Learn about the new features in VisualCAD/CAM 2014

Quick Start Guide Video Links
VisualCAD/CAM 2014 – MILL Quick Start Guide
Machining Methods Video Links
2½ Axis Toolpath Methods Overview
3 Axis Toolpath Methods Overview
3 Axis Advanced Toolpath Methods Overview
4 Axis Toolpath Methods Overview
2½ Axis Tutorials Video Links
2½ Axis Profiling using VisualMILL 2012
2½ Axis Pocketing using VisualMILL 2012
3 Axis Tutorials Video Links
Introduction to 3 Axis Milling using VisualMILL 2012
Advanced 3 Axis Milling using VisualMILL 2012
3 Axis Drilling using VisualMILL 2012

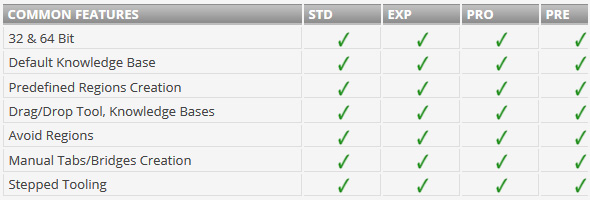

Common Features

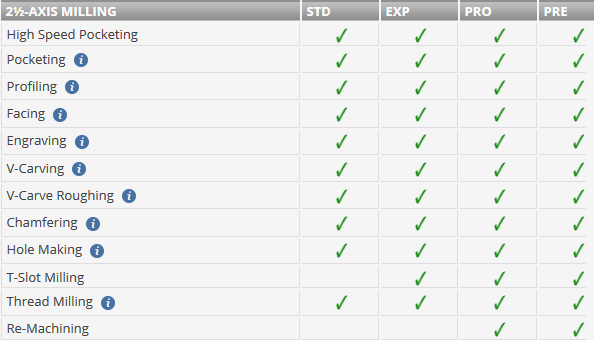

2 1/2-Axis Milling

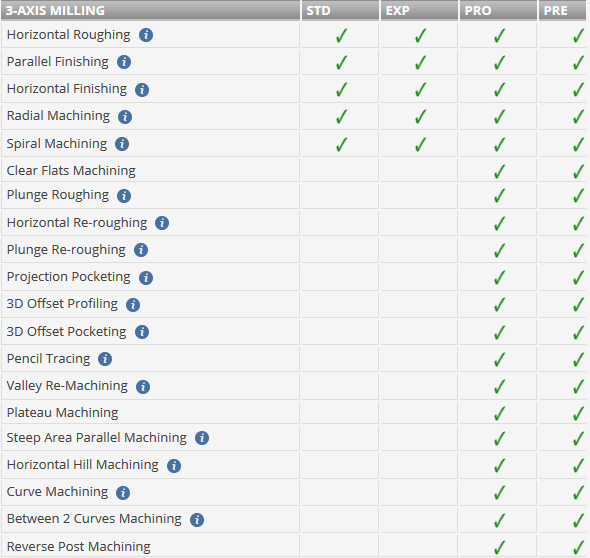

3-Axis Milling

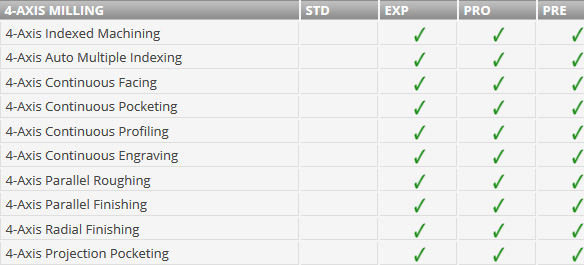

4-Axis Milling

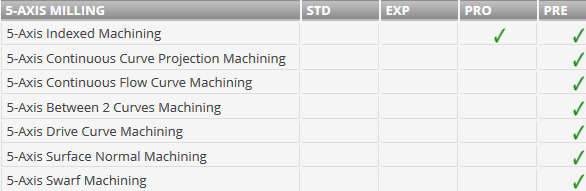

5-Axis Milling

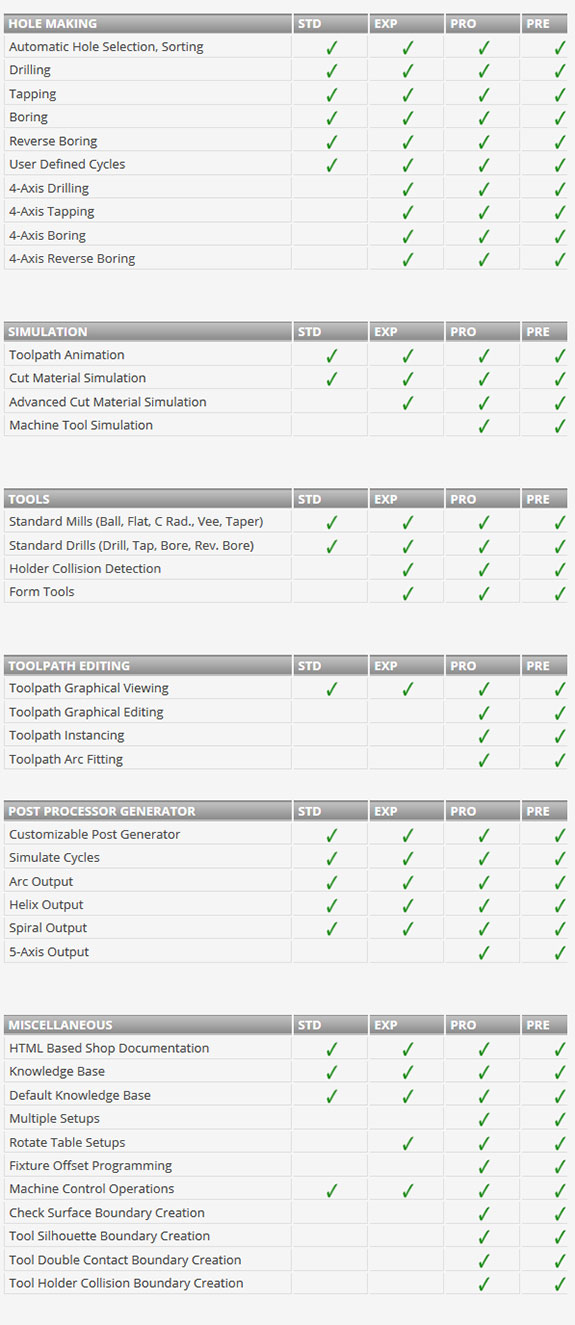

Other

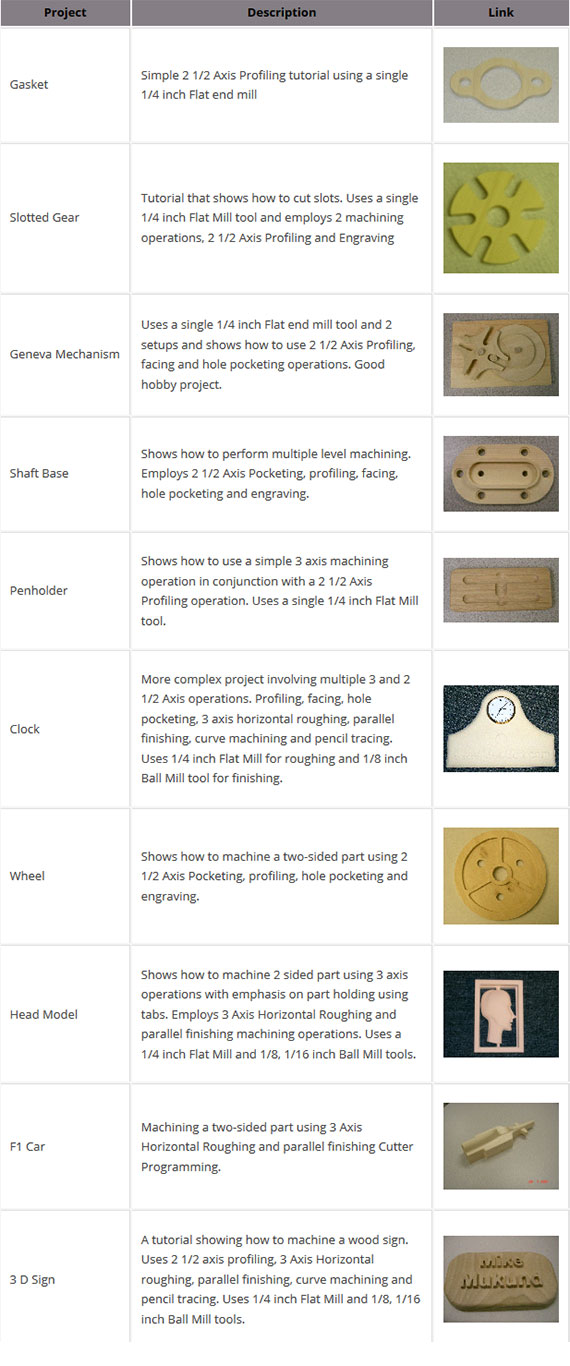

Please use the following free project tutorials to help you learn VisualMILL/RhinoCAM. Each project is tailored to show the user different machining methods and the situations under which these machining methods will be used. Each project download include the project tutorial file, the design files along with the programmed machining methods as well as the G-code files. It should be noted that each project was actually machined on a Techno-Isel 3-axis milling machine and proofed out. The G-code files are included in the download. You can run these G-code files if you own a Techno-Isel machine. Care should be taken, however to make sure to duplicate the setups described in the included tutorial document.
